High Gradient Magnetic Separators (HGMS)

Working Principle

High Gradient Magnetic Separators (HGMS) function through a high-velocity physical separation zone that balances centrifugal force, gravitational pull, and intense magnetic attraction simultaneously. During continuous plant operation, dry bulk solids, crushed minerals, or industrial recyclables are fed onto the conveyor belt and transported smoothly toward the magnetic pulley. As the material mixture stream enters the field zone generated by the specialized roller, non-magnetic materials follow a natural forward trajectory dictated by inertia and fall directly into the clean product receiving hopper. Concurrently, ferrous elements, tramp iron, and weakly magnetic particles are securely held against the belt surface by the powerful magnetic forces, moving around the underside of the roller before being released automatically into a separate refuse area once the belt departs from the magnetic matrix.

Structure and Heavy-Duty Engineering Design

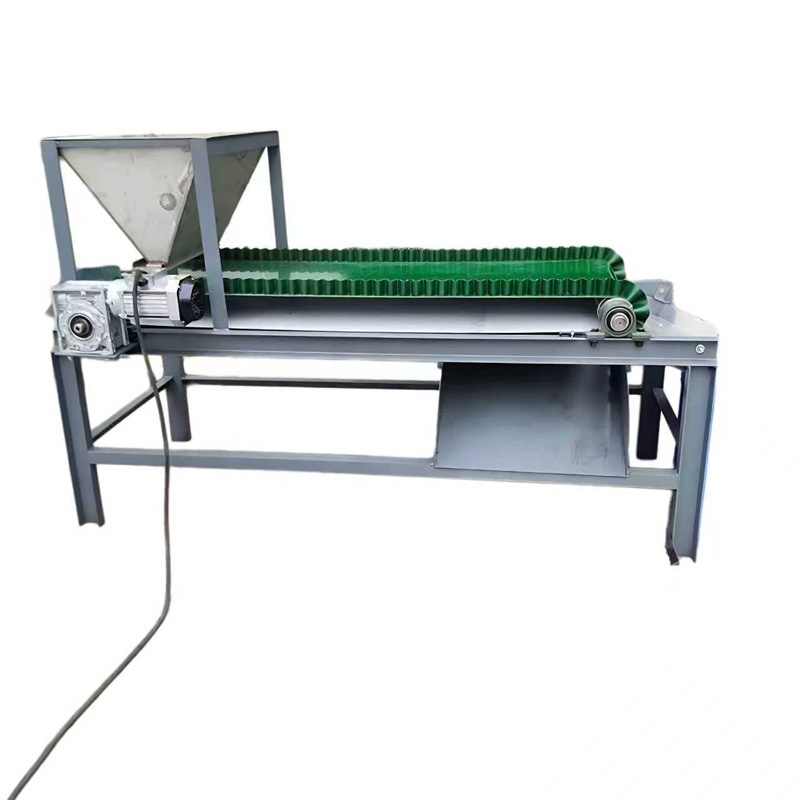

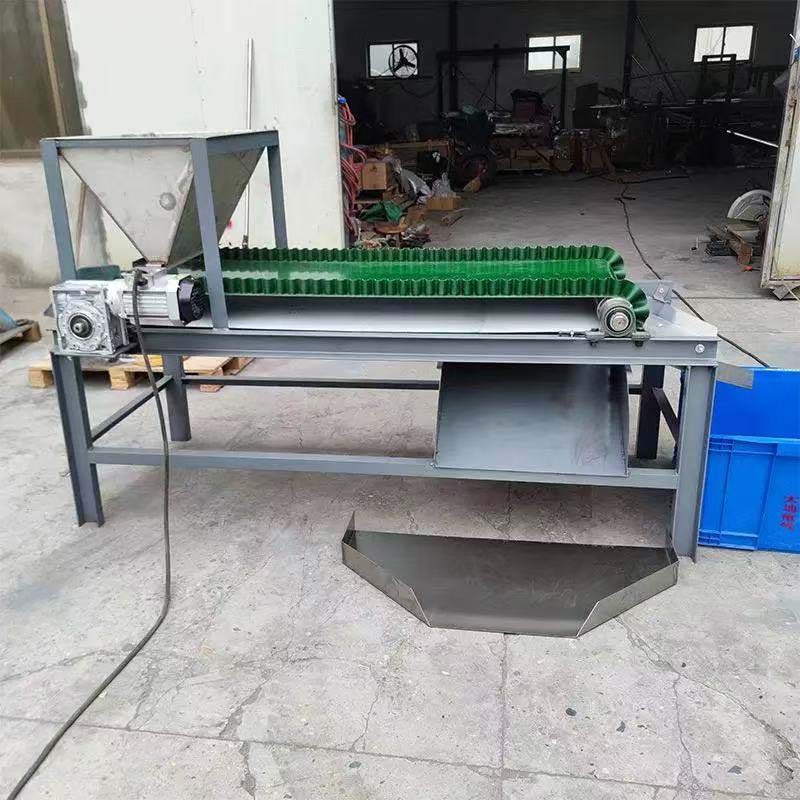

Every High Gradient Magnetic Separator (HGMS) engineered by MagnetGlobal is constructed as a high-durability, structural-grade processing system built to perform flawlessly under severe material loads and harsh environmental conditions. The main mechanical frame, heavy-duty support stanchions, input hoppers, and discharge chutes are fabricated from premium structural stainless steel or reinforced carbon steel with protective coatings to guarantee absolute rigidity and resistance to impact wear. The internal heart of the magnetic roller assembly utilizes a high-density, specialized matrix of rare-earth Neodymium Iron Boron (NdFeB) permanent magnets structured in a highly optimized proprietary circuit. This advanced configuration creates an exceptionally high magnetic field gradient that remains stable across decades of operation, while the outer conveyor belt is crafted from heavy-duty, wear-resistant, anti-static polyurethane or rubber to handle highly abrasive materials without tearing or slipping.

Features and Advanced Sorting Capabilities

A defining technical advantage of our High Gradient Magnetic Separators (HGMS) is their unparalleled capacity to generate high-flux magnetic fields that easily capture sub-millimeter iron dust, mechanical rust scales, and even weakly magnetic minerals like hematite, manganese, or oxidized steel fragments that conventional magnetic separators miss. The customized roller system features precise variable-speed motor controls, allowing plant engineers to adjust conveyor velocities and material bed thickness to achieve the optimal separation efficiency based on specific density and contamination levels. To protect the internal high-gradient permanent magnets from operational heat and ambient elements, the roller core is fully sealed and rated for dust-tight, weatherproof performance. While standard mechanical configurations run beautifully in outdoor ambient conditions up to 80 degrees Celsius, we provide customized, heat-stabilized internal magnet variants to handle hot materials directly following industrial kilns or rotary dryers up to 150 degrees Celsius.

Key Advantages of MagnetGlobal Sorting Systems

Investing in our High Gradient Magnetic Separator (HGMS) line yields permanent product quality enhancement, absolute protection for downstream crushing machinery, and a significant reduction in overall plant operating overhead. Operating as a passive, permanent magnetic sorting platform, the primary separation field requires zero electrical grid power to maintain its intense pulling force, resulting in massive energy savings compared to traditional electromagnets and ensuring uninterrupted separation even during sudden factory power failures. The continuous self-cleaning action of the moving belt eliminates the need for manual scraping, transforming a traditionally high-maintenance job into a completely automated, zero-downtime operation. Furthermore, the high-purity segregation reduces wear on subsequent fine milling or extrusion equipment, preventing costly mechanical breakdowns and minimizing plant maintenance shutdowns.

Target Applications and Industrial Engineering Support

These heavy-duty High Gradient Magnetic Separators (HGMS) serve as critical process components globally trusted across heavy industrial sectors to purify large-scale bulk aggregates, industrial minerals, and recycled commodities. They are extensively utilized in mining operations for iron ore concentration and silica sand purification, in building material facilities for ceramic raw material cleaning, and in large recycling centers for sorting shredded electronics, scrap metals, and plastic flakes. MagnetGlobal offers comprehensive technical consulting, custom mechanical blueprinting, and complete integration support for your plant layout. Our experienced engineering team can customize the total width of the separator, belt lengths, motor positioning, and connection flange parameters to fit seamlessly into your existing conveyor networks, vibrating feeders, or vertical chutes, ensuring unmatched separation reliability and world-class performance.
