Magnetic Grates
Magnetic grates are assembled from multiple high-strength magnetic rods and are available in standard, round, square, and other configurations. They are specifically designed for ferrous removal in gravity-fed or bulk material conveying processes. During material flow, magnetic grates effectively capture iron filings, screws, and fine metal contaminants. Commonly installed in hoppers, chutes, and feeding inlets, they serve as an ideal solution for improving ferrous separation efficiency and overall product quality.
-Product Highlights

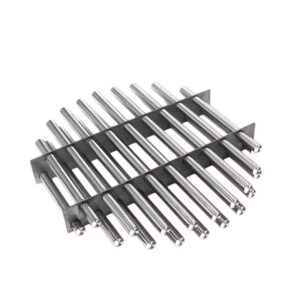

The Food Grade Round Magnetic Grates are heavy-duty permanent magnetic separation systems engineered to deliver superior purity control in high-hygiene production lines. Each circular unit is constructed with a premium 304 or 316L stainless steel housing that holds an optimized array of high-intensity magnetic rods. It is ideally suited for direct integration into round hoppers, vertical chutes, and material pipelines to intercept fine ferrous debris before it reaches downstream machinery. Featuring zero power consumption, straightforward installation, and effortless cleaning, these food-grade round magnetic grates offer a passive, cost-effective solution for treating powders, granular bulk solids, and liquid slurries.
-Working Principle
Food Grade Round Magnetic Grates utilize a carefully designed permanent magnetic field pattern across multiple parallel rods. When raw materials flow through the circular frame by gravity or mechanical force, any magnetic contaminants and fine iron fragments are instantly pulled from the product stream and locked securely onto the underside of the bars. The staggered arrangement of the internal magnetic elements forces the material to pass closely over the high-intensity surfaces, achieving maximum iron removal efficiency and preventing product contamination.
-Product Highlights

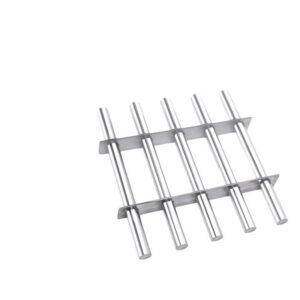

The Custom Square Magnetic Grids are heavy-duty, permanent magnetic separation solutions designed to provide exceptional material purification for industrial processing systems. Each unit is precisely engineered with a durable 304 or 316L stainless steel square frame housing high-intensity round magnetic rods arranged in a parallel layout. This geometry allows the grid to fit perfectly into square hoppers, rectangular vertical chutes, and square material pipelines to intercept fine ferrous particulates. Operating with stable magnetic field performance and zero energy consumption, these custom square magnetic grids feature a highly adaptable and separable structure that effectively protects your downstream processing machinery and improves final product purity.
-Working Principle
Custom Square Magnetic Grids function by creating an optimized multi-gap magnetic barrier across the entire cross-section of a square flow path. As dry powders, bulk granules, or aggregates fall through the grid framework by gravity, any present ferromagnetic impurities and fine mechanical wear are immediately deflected toward the high-flux rods. The intense magnetic forces pull the contaminants away from the active product stream and lock them securely onto the underside of the stainless steel bars. This physical trapping mechanism ensures that clean materials pass through unobstructed while hazardous tramp iron is reliably isolated.
– Product Highlights

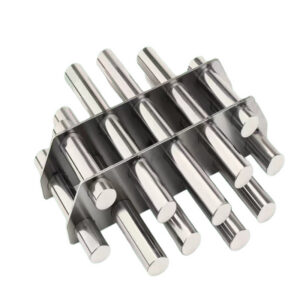

The Stainless Steel Magnetic Grate Separators (also commonly referred to as industrial magnetic grills or grids) are highly efficient permanent magnetic separation systems engineered to extract fine ferrous impurities from various processing lines. These versatile units feature high-performance magnetic rods securely mounted within a rigid stainless steel framework, allowing them to operate continuously without secondary material contamination or electrical energy consumption. Designed for seamless integration, they can be easily positioned at any critical point in the production flow where dry powders, granular materials, liquids, or thick slurries pass through. This makes them an exceptionally reliable, efficient, and maintenance-free solution for cross-sectional ferrous contaminant separation.
– Working Principle
Stainless Steel Magnetic Grate Separators function by projecting a powerful, dense magnetic field across the entire path of material flow via high-flux permanent magnetic tubes. As raw materials flow or drop through the grid structure by gravity or pneumatic pressure, any present ferrous contaminants, rust particles, and fine mechanical wear are instantly diverted toward the surface of the rods and securely held there. This reliable physical gripping mechanism completely isolates harmful metal pieces from the active product stream, ensuring excellent final product purity and preventing downstream machinery blockages.
