Magnetic Separators

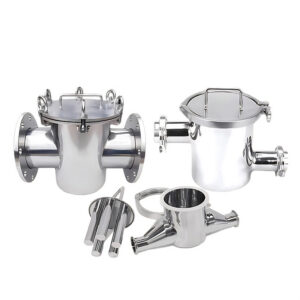

The in-line magnetic separator for liquids is a stainless steel pipeline-type permanent magnetic separator equipped with powerful internal magnetic rods. It is designed for liquid raw materials in food & beverage, chemical, petroleum, and pharmaceutical industries. Optimized for fluid flow characteristics, it efficiently captures iron particles and rust during continuous processing. Featuring no energy consumption, easy cleaning, wide pressure compatibility, and ferrous removal efficiency above 99%.

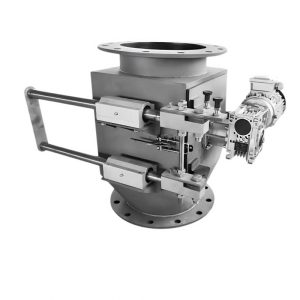

The rotary magnetic separator is an automatic ferrous removal device featuring an internal ring array of permanent magnetic rods. Driven by a motor, the magnetic system rotates slowly to prevent material bridging and ensure continuous separation of ferrous contaminants. Suitable for dry powders and granular materials, it offers high automation, no secondary contamination, and is widely applied in food, plastic, lithium battery, and mining industries.

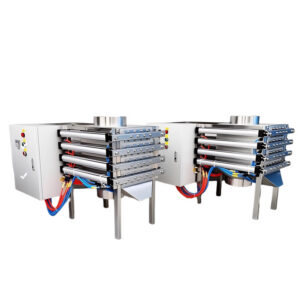

The Fully Automatic Drawer-Type Dry Powder Magnetic Separator is a PLC-controlled electromagnetic system featuring periodic or continuous automatic discharge. Designed for dry powder, fine powder, and granular materials in continuous production lines, it achieves over 99% ferrous removal efficiency. The system supports unmanned operation, prevents secondary contamination, and is widely used in lithium battery, food, pharmaceutical, and fine chemical industries.

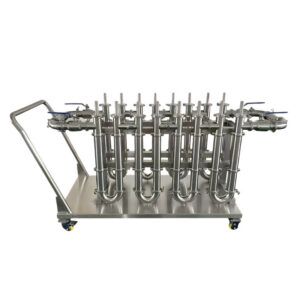

The lithium battery slurry magnetic filtration cart is a mobile pipeline-type magnetic filtration system designed for continuous slurry processing. Powered by high-intensity permanent magnetic sources and multi-stage magnetic rods or magnetic media, it efficiently removes micron-level ferrous contaminants from slurry within a sealed flow channel. Designed for lithium battery, ceramic, and fine chemical industries, it supports manual or automatic cleaning, offers flexible installation, and is easy to move.

-Product Highlights

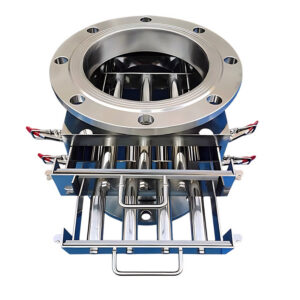

The powder hopper drawer-type magnetic separator consists of a stainless steel housing with a built-in high-intensity magnetic grate (round magnetic rod array). Designed for powders, silos, chutes, and pipelines, it provides fixed-point interception, easy cleaning, and zero energy consumption. Widely used in food, pharmaceutical, lithium battery, plastic, and ceramic industries, it protects equipment, improves material purity, and achieves ferrous removal efficiency of over 99%.

-Working Principle

The Powder Hopper Magnetic Separator operates by utilizing the strong magnetic field generated by high-intensity magnetic rods to attract and hold ferrous contaminants.

During operation, material containing iron impurities enters through the top inlet and flows evenly into the magnetic field zone formed by the arranged magnetic rods. As ferrous contaminants such as iron filings, iron powder, and rust particles pass through the magnetic field, they are attracted to the rod surfaces.
Clean, impurity-free material then flows through the gaps between the rods and exits through the bottom outlet, continuing to the next processing stage.

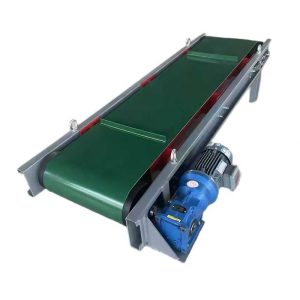

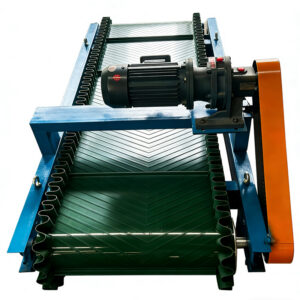

The core component of the high gradient magnetic separator is the magnetic roller installed at the tail end. As the material passes over the conveyor belt to the tail end of the equipment, the magnetic roller uses a strong magnetic field to attract ferromagnetic impurities in the material. Utilizing the machine’s inertia and the magnetic roller’s attraction force, the ferromagnetic impurities are separated from the material, thus achieving the sorting effect.
