Automatic Rotary Magnetic Separators
-Product Highlights

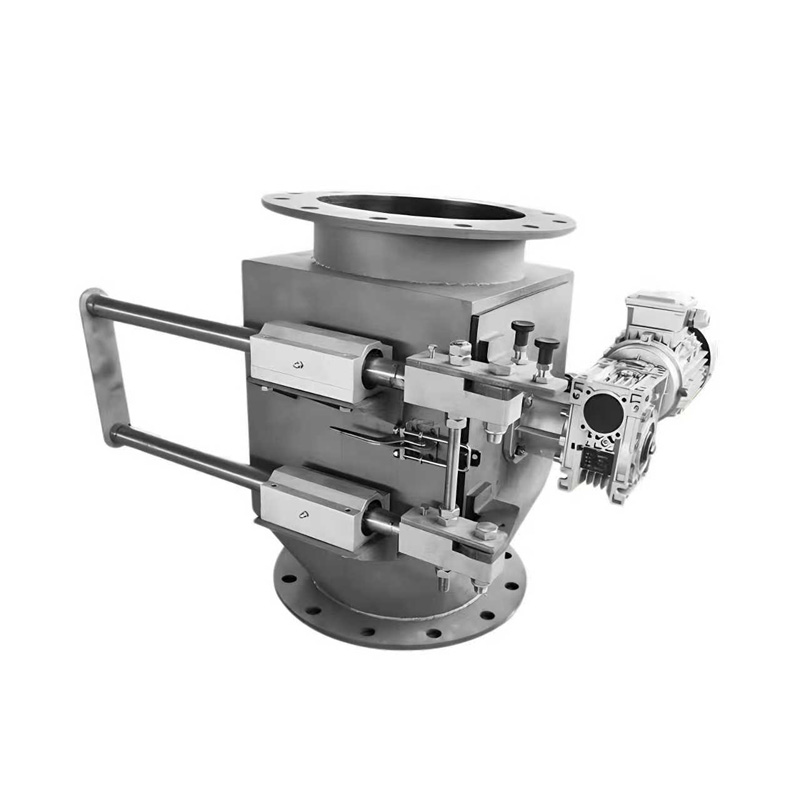

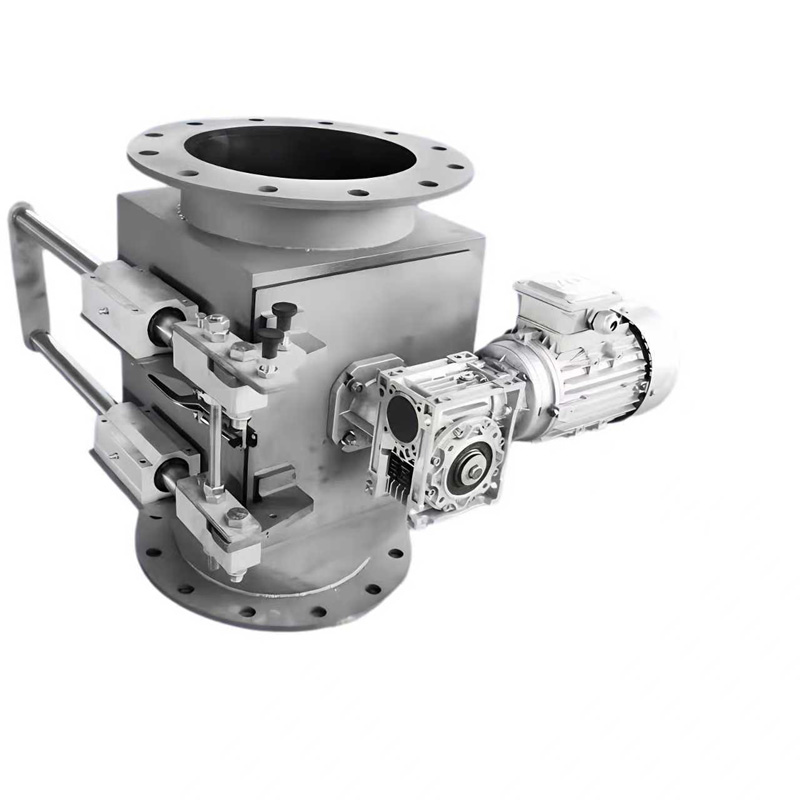

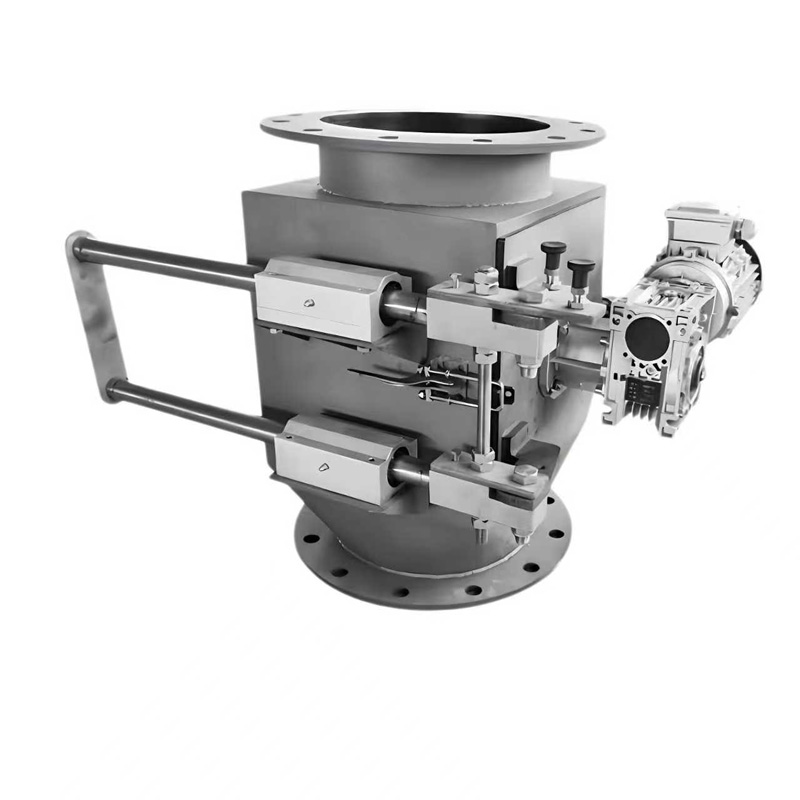

The Automatic Rotary Magnetic Separators are high-efficiency, motorized iron isolation systems designed to handle challenging dry materials that tend to compact or block traditional static grids. Each unit features a heavy-duty housing containing an internal ring array of high-intensity permanent magnetic rods. Driven by a dependable electric gear motor, the entire magnetic rod system rotates slowly within the material stream to continuously prevent material bridging and ensure uniform flow during continuous processing. These advanced systems are uniquely optimized for processing dry fine powders and cohesive granular materials, offering high automation, maintaining a totally enclosed layout that eliminates secondary environmental contamination, and delivering exceptional ferrous separation across the food processing, plastics, lithium battery, and heavy mining industries.
-Working Principle

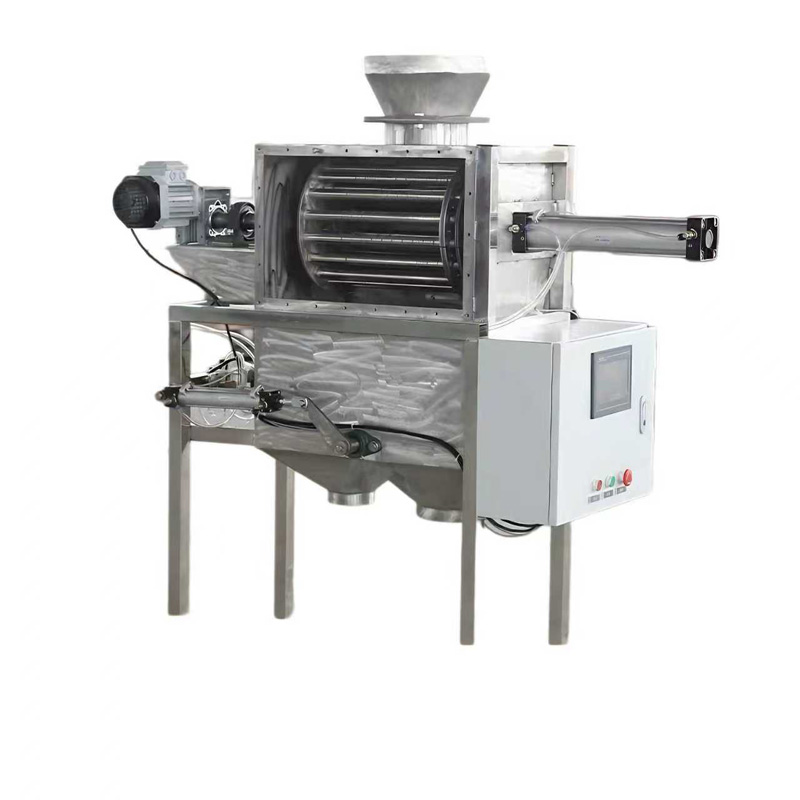

Automatic Rotary Magnetic Separators function by combining the intensive localized pull of rare-earth permanent magnets with continuous mechanical agitation. As dry materials fall into the top inlet by gravity, the motor drives the internal circular basket of magnetic bars to rotate steadily. This slow rotational movement constantly breaks up cohesive material clusters and shifts the product particles, ensuring every grain passes through the intense magnetic fields without clinging or piling up on top of the bars. Any presence of fine tramp iron, mechanical scale, and paramagnetic fragments is immediately drawn to the moving surfaces and held securely, while the clean, metal-free powder drops smoothly out through the bottom discharge connection.
Product Information
Structure and Materials
Every Automatic Rotary Magnetic Separator manufactured by MagnetGlobal is engineered to deliver reliable 24/7 industrial performance under continuous material loads. The external housing, access doors, and the rotating magnetic rod assembly are fully constructed from premium SUS304 or SUS316L stainless steel. All interior structural welds are ground smooth and polished to meet strict sanitary standards and minimize powder adherence, which is vital for preventing cross-contamination in color-sensitive or batch-sensitive operations. The internal core of each rotating bar contains stabilized high-flux rare-earth Neodymium (NdFeB) permanent magnets paired with low-carbon steel flux plates, forming a dense circuit that resists demagnetization and stands up to demanding industrial environments.
Features and Technical Specifications

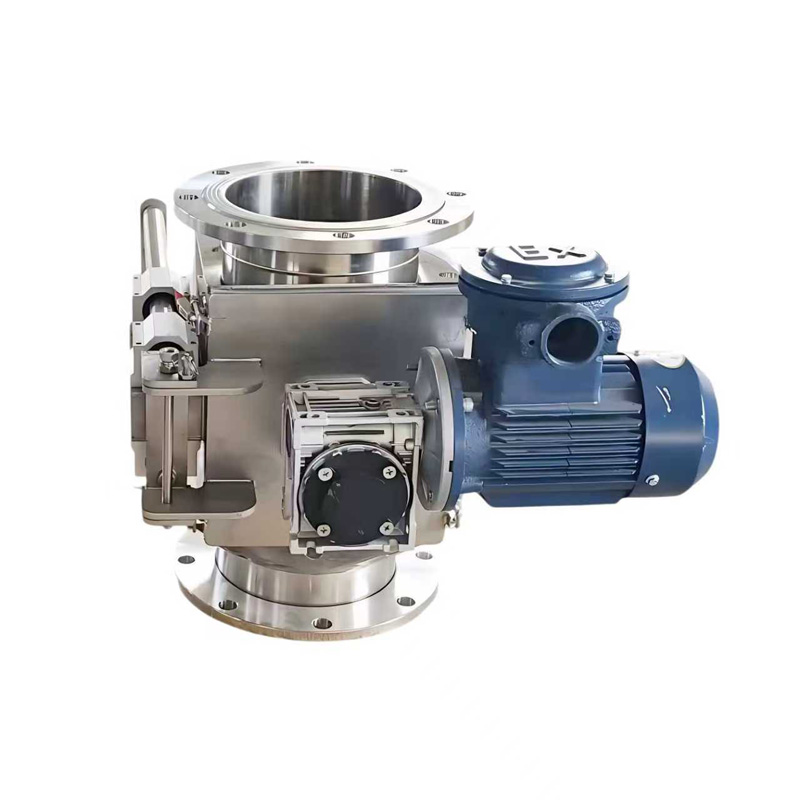

A defining advantage of our Automatic Rotary Magnetic Separators is their specialized mechanical design that bridges the gap between passive magnetic filtration and automated plant integration. The surface magnetic field strength can be calibrated up to a powerful 12,000 Gauss, making it fully capable of trapping microscopic iron wear from fast-moving bulk solids. The system features a dust-tight, heavy-duty industrial electric motor and gearbox configuration that guarantees steady shaft rotation under varying material densities. To ensure a completely dust-free work environment, the main access door is sealed with high-performance, wear-resistant gaskets made from food-grade silicone, Viton, or chemical-resistant rubber. While standard systems operate flawlessly in ambient temperatures up to 80 degrees Celsius, custom thermal insulation packages and high-temp internal magnets can be integrated to safely manage materials up to 150 degrees Celsius for hot drying loops.
Key Advantages of MagnetGlobal Rotary Separators
Investing in our Automatic Rotary Magnetic Separators provides automated material purity protection, eliminates production line clogging, and significantly reduces operator labor costs. Unlike static magnetic grills that require frequent manual scraping and cause process shutdowns when blocked, the active rotating mechanism keeps the material moving freely, drastically improving final plant throughput and efficiency. Operating with permanent magnets means the system maintains its full separation capability even during sudden plant power failures, as the motor is only required for the physical rotation of the basket. The robust housing design features a quick-access front door secured with heavy-duty swing bolts, allowing operators to quickly pull out the internal magnetic rotor assembly for easy manual cleaning during scheduled plant maintenance windows.
Target Applications and Engineering Support
These industrial-grade Automatic Rotary Magnetic Separators are critical process components globally used to protect high-precision downstream assets like ultra-fine jet mills, bagging machines, and compounding extruders from catastrophic metal damage. They are heavily relied upon in the lithium battery industry for purifying cathode and anode powders, fine chemical manufacturing, pharmaceutical powder handling, and food plants processing milk powder, starch, sugar, or cocoa. MagnetGlobal provides comprehensive engineering customization to fit your existing plant layout perfectly. Our technical support team can work directly from your specific flow rate requirements and space limitations to customize the round or square flanged connections, frame dimensions, internal bar spacing, and motor orientation, ensuring unparalleled separation reliability for your production line.
