Permanent Magnetic Drum Separators

Working Principle

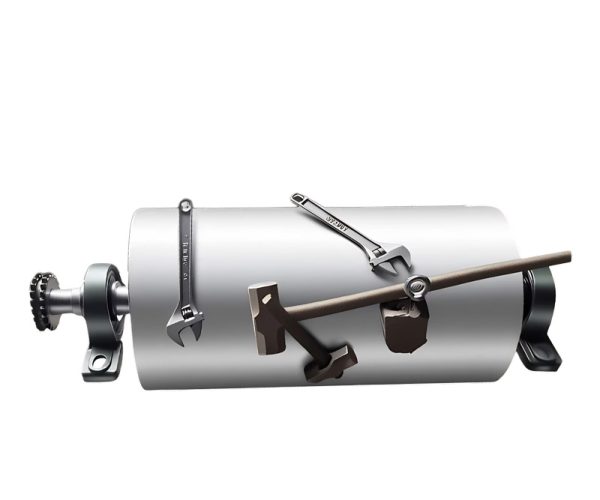

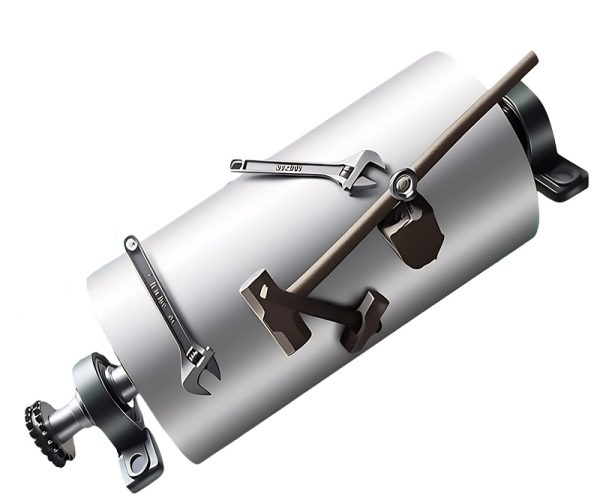

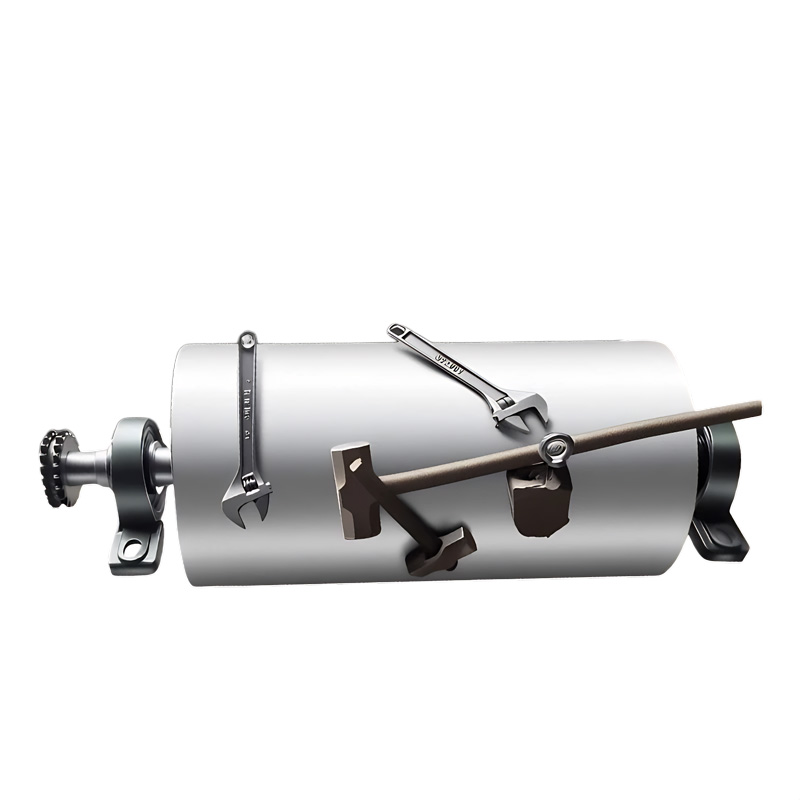

Permanent Magnetic Drum Separators function by combining a static, semi-circular internal magnetic core with a continuously rotating outer stainless steel shell. As raw material streams fall or travel onto the revolving drum surface, non-magnetic materials drop off immediately along a natural forward trajectory determined by gravity and centrifugal force. Concurrently, any tramp iron, mechanical scale, or fine ferrous dust enters the powerful localized magnetic zone, where they are instantly attracted and locked firmly against the outer shell. The rotating drum shell carries these captured metallic impurities past the internal magnetic boundary to a non-magnetic release sector, where the pulling force naturally drops off and causes the collected iron particles to discharge automatically into a separate refuse chute without requiring manual intervention or stopping the process flow.

Structure and Heavy-Duty Drum Construction

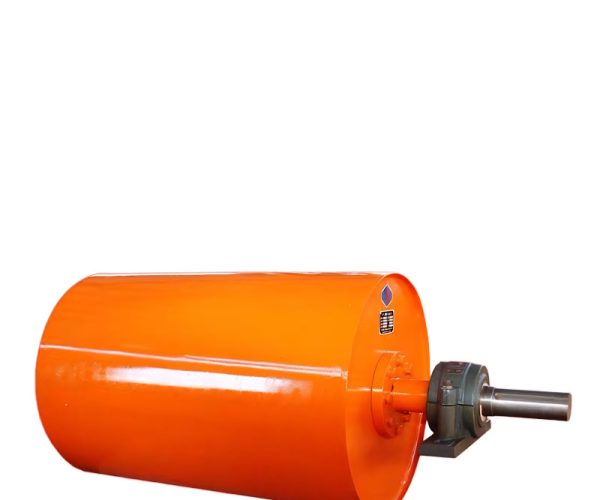

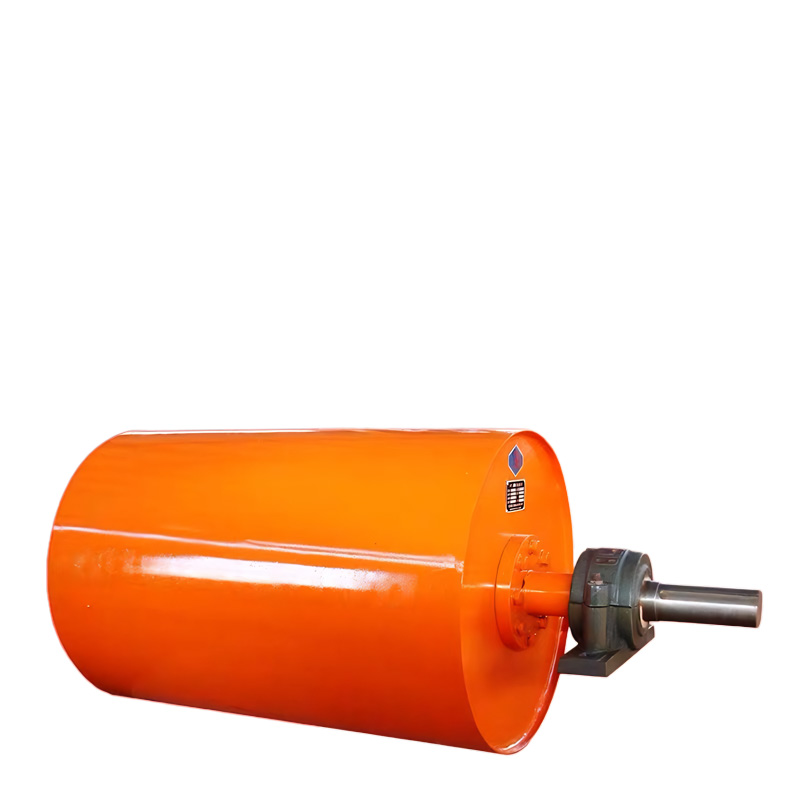

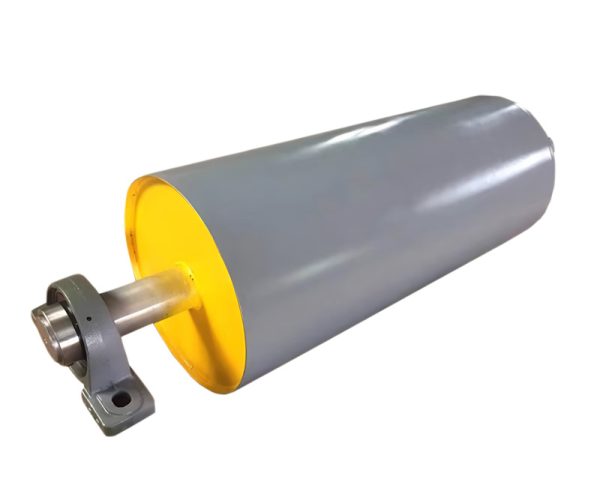

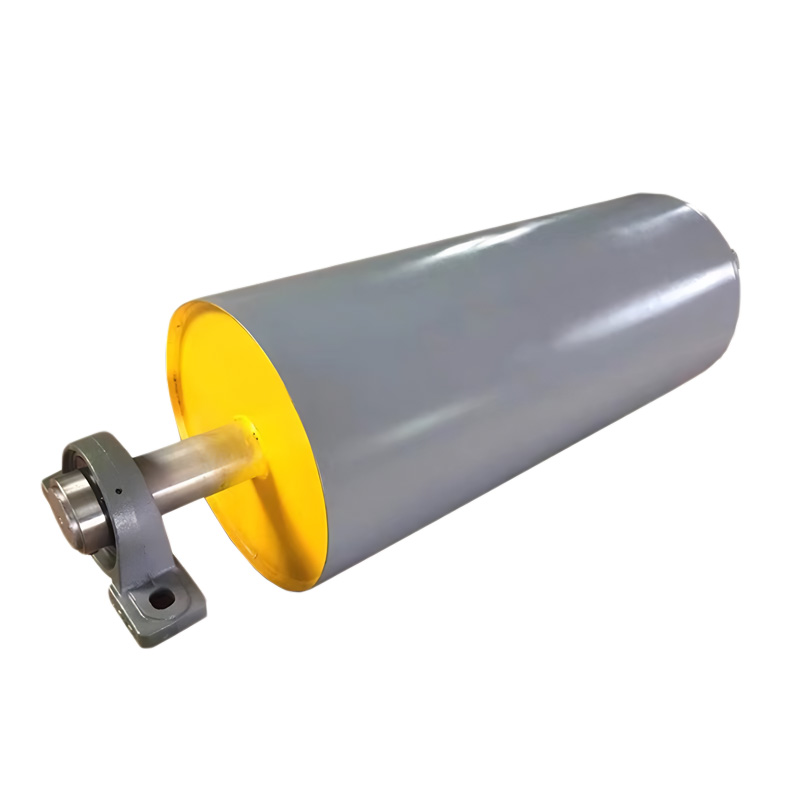

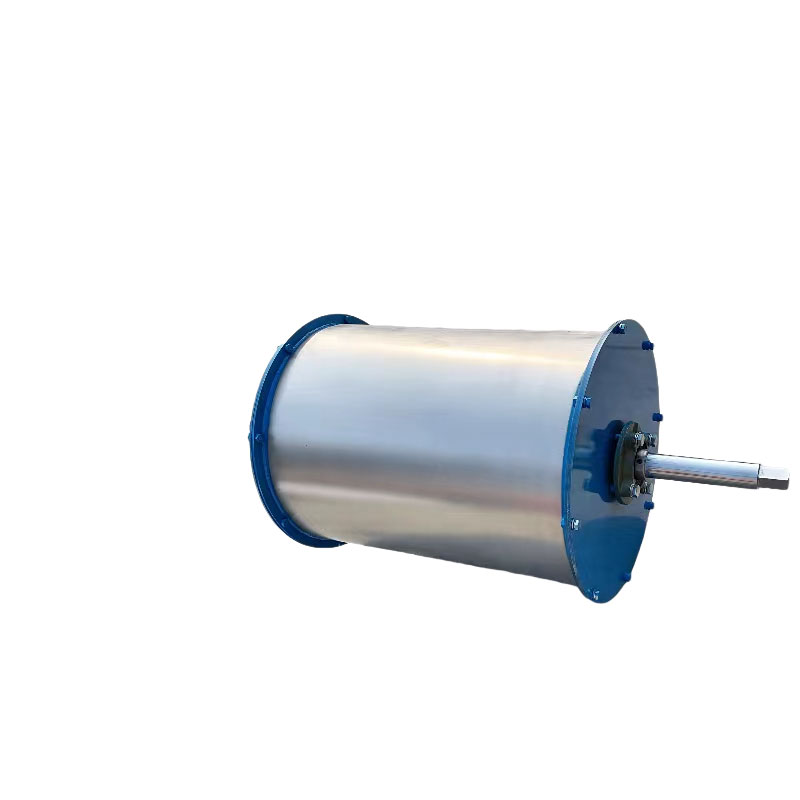

Every Permanent Magnetic Drum Separator engineered by MagnetGlobal is constructed as a structural-grade industrial purification system built to handle aggressive volumetric loads and abrasive material conditions. The outer rotating cylindrical shell, precision-machined heavy-duty drive shafts, and fully sealed end flanges are fabricated from premium, non-magnetic SUS304 or SUS316 stainless steel to eliminate magnetic flux dampening and maximize external field projection into the product bed. Tucked safely inside the revolving drum skin is a robust, stationary magnetic core utilizing an optimized proprietary arrangement of high-coercivity rare-earth Neodymium Iron Boron (NdFeB) and premium strontium ferrite permanent magnets. This stationary arc can be mechanically indexed and adjusted from the outside to fine-tune the precise angle of the discharge zone, while the heavy-duty shaft extensions are precision-turned to seamlessly accommodate standard industrial pillow block bearings, direct motor couplings, or external gear drive sprockets.

Features and Tailored Industrial Performance

A core technical advantage of selecting our Permanent Magnetic Drum Separators is their exceptional capacity to maintain uniform magnetic coverage across the entire active face of the machine, preventing fine contaminants from finding gaps in the material flow. The internal permanent magnetic circuit can be tailored to deliver surface intensities ranging from a standard 3,000 Gauss for large scrap iron up to an ultra-high gradient of 10,000 Gauss specifically for capturing micron-sized iron dust, weakly magnetic oxidized flakes, and mechanical wear particles. To protect the internal magnetic assembly from severe environmental ingress, the drum features a dust-tight, completely sealed weatherproof housing rated for reliable operation in high-humidity mineral washing lines or outdoor mining quarries. While standard mechanical configurations run beautifully in traditional ambient zones up to 80 degrees Celsius, custom configurations can be engineered with thermal-stabilized internal magnets to safely manage hot bulk materials up to 150 degrees Celsius coming directly from industrial ovens or rotary kilns.

Key Advantages and Automation Return on Investment

Investing in the MagnetGlobal Permanent Magnetic Drum Separator line yields massive financial and operational benefits, including absolute downstream asset protection and a complete elimination of daily maintenance labor costs. Because the outer rotating shell acts as an intrinsic self-cleaning mechanism that discards collected iron continuously during rotation, it transforms a traditionally high-maintenance job into a completely automated, zero-downtime operation. Running purely on stable permanent magnetic physics means the core separation fields require zero electrical grid power to maintain their intensive pulling force, translating into substantial monthly energy savings compared to electromagnets and ensuring that dangerous tramp metals are securely isolated even during unexpected factory-wide power failures. By consistently removing hazardous metal items before they pass further down the line, it shields high-value secondary milling assets, fine granulators, and ultra-fine pulverizers from catastrophic tool breakages.

Target Applications and Plant Engineering Support

These industrial-grade Permanent Magnetic Drum Separators serve as indispensable purification and quality-assurance checkpoints globally trusted across large-scale bulk handling, aggregate processing, and resource recovery sectors. They are heavily relied upon in silica sand and quartz purification lines, coal sorting plants, grain milling facilities handling agricultural bulk, and large-scale e-waste or municipal solid waste shredding plants for segregating ferrous fractions. MagnetGlobal provides comprehensive technical engineering, custom shell blueprinting, and complete plant layout integration support. Our experienced engineering team can customize the total drum diameter, face width, shaft extensions, internal magnetic arc angles, and custom collection hoppers to align perfectly with your existing conveyor networks, vibratory feeders, or vertical chutes, ensuring unparalleled separation reliability and world-class performance.
