Electromagnetic Disc Separators

Working Principle

Electromagnetic Disc Separators operate by converting electrical energy into an adjustable, deep-penetrating magnetic force zone directly beneath the circular housing. When the active excitation coils are energized by the plant control panel, an intense magnetic flux throw is projected down into the moving product bed on the conveyor belt. As materials pass through this active zone, any embedded ferrous debris, rust particles, and low-magnetic metal scales are instantly drawn upward against gravity and locked securely against the lower face of the heavy disc unit. For cleaning and maintenance cycles, operators simply position the disc over a dedicated refuse chute or refuse bin and cut the electrical current via the control switch, causing the magnetic field to drop to zero and instantly releasing the accumulated iron impurities automatically without manual scraping.

Structure and Heavy-Duty Electromagnetic Coil Construction

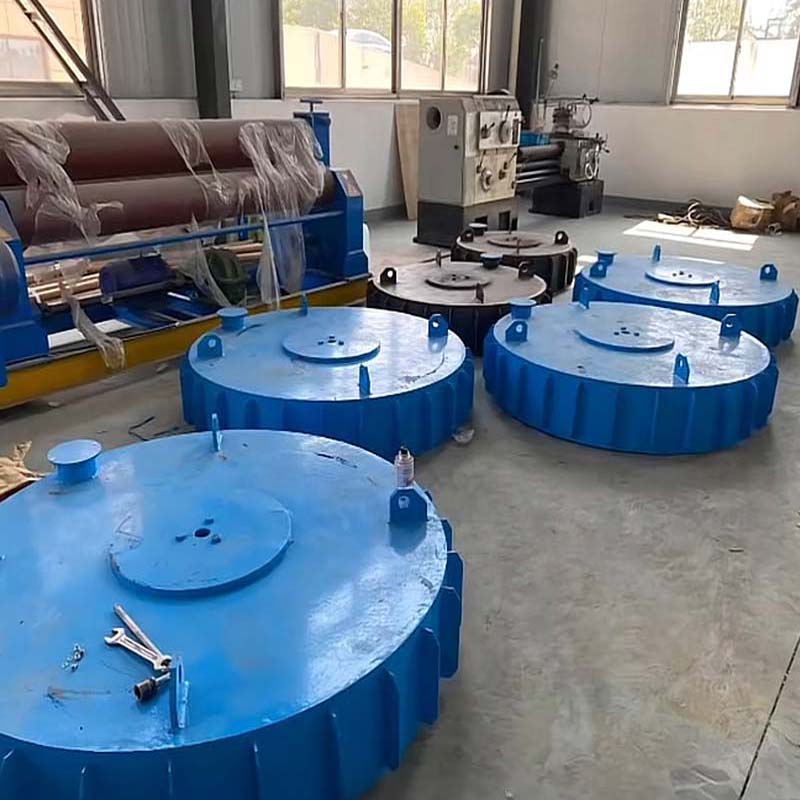

Every Electromagnetic Disc Separator manufactured by MagnetGlobal is engineered as a heavy-duty industrial purification asset built to operate continuously in severe, high-dust production environments. The structural circular housing is fabricated from high-permeability steel and reinforced carbon steel to maximize flux containment and focus the energy downward toward the conveyor system. The internal heart of the machine features precision-wound aluminum or copper excitation coils wrapped in premium, high-temperature class-H electrical insulation to prevent internal short circuits and ensure consistent electrical conductance. The entire coil matrix is vacuum-impregnated with specialized thermal epoxy resin or immersed in protective cooling oil within a completely sealed, weatherproof enclosure, providing excellent heat dissipation and protecting the sensitive electrical components from abrasive outdoor dust, chemical vapors, and moisture ingress.

Features and Intelligent Control Integration

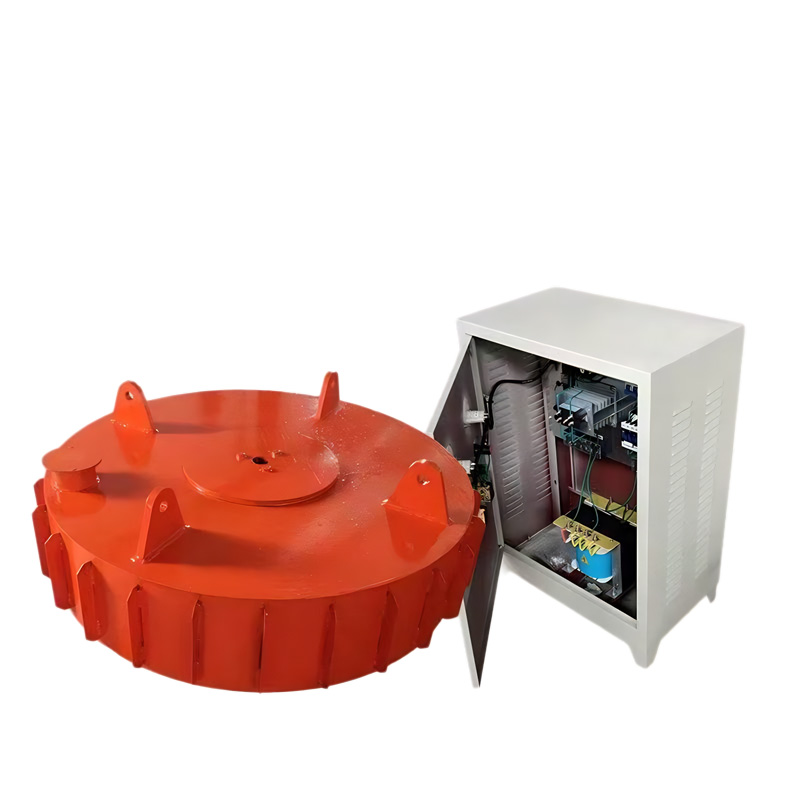

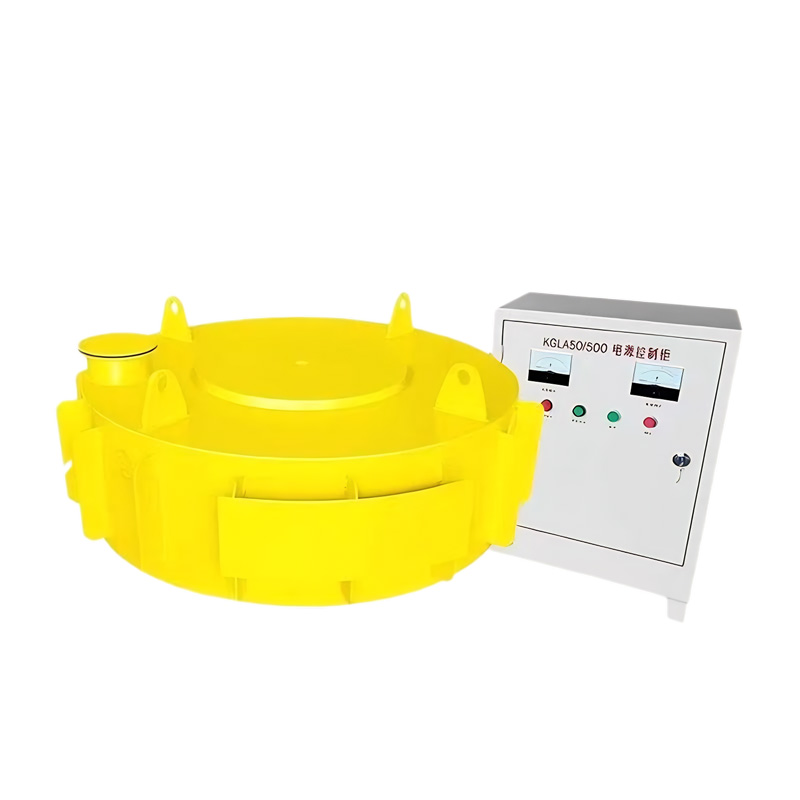

A primary technical advantage of selecting our Electromagnetic Disc Separators is the unparalleled operational flexibility provided by the centralized electrical control cabinet. Unlike permanent magnetic plates that deliver a fixed, unchanging surface force, our electromagnetic system allows plant engineers to dynamically scale the voltage and current to adjust the localized Gauss levels based on shifting material bed thicknesses and volumetric flow rates. The active power regulation can be configured to generate an ultra-high gradient field capable of grabbing sub-millimeter iron dust and weakly magnetic paramagnetic flakes that standard separators fail to attract. To facilitate seamless integration into modern smart factories, the electronic control cabinet features dedicated interface ports for PLC remote control, allowing automated line monitoring, instant on-off cycling, and automated error diagnostics directly from a centralized control room.

Key Advantages and Industrial Value

Investing in the MagnetGlobal Electromagnetic Disc Separator line yields outstanding process purification results, absolute machinery protection, and low long-term operational labor requirements. Because the removal of captured tramp metal relies entirely on an effortless electrical de-energization cycle rather than intense manual scraping or wiping, it drastically reduces operator exposure to sharp metal debris and shortens scheduled plant maintenance windows. The robust, heavy-walled structural design effectively absorbs continuous physical impacts from large rock aggregates or minerals without deforming, while the lack of external moving mechanical belts translates into near-zero wear and remarkably minimal mechanical replacement costs over decades of constant operation. By thoroughly stripping hazardous ferrous items out of the production line, it successfully shields downstream high-value assets like ultra-fine millers, high-pressure rollers, and granulators from catastrophic tool breakages.

Target Applications and Engineering Support

These industrial-grade Electromagnetic Disc Separators serve as indispensable protective assets globally trusted across heavy-volume bulk handling, resource recovery, and raw material processing sectors. They are heavily relied upon in large-scale coal processing stations and thermal power generation plants to purify incoming fuels, in cement manufacturing for raw meal protection, in mining quarries for iron ore sorting, and in the chemical sector for processing bulk powders. MagnetGlobal provides comprehensive technical engineering, custom coil balancing, and complete plant layout integration support. Our experienced engineering team can customize the total disc diameter, suspension height rigging, electrical input voltages, and structural mounting frames to match your exact belt conveyor speeds, material density profiles, and structural geometries, ensuring unmatched separation reliability and world-class performance.
