Stainless Steel Square Magnetic Bars

Structure and Materials

Each Stainless Steel Square Magnetic Bar from MagnetGlobal features an advanced multi-layered engineering design:

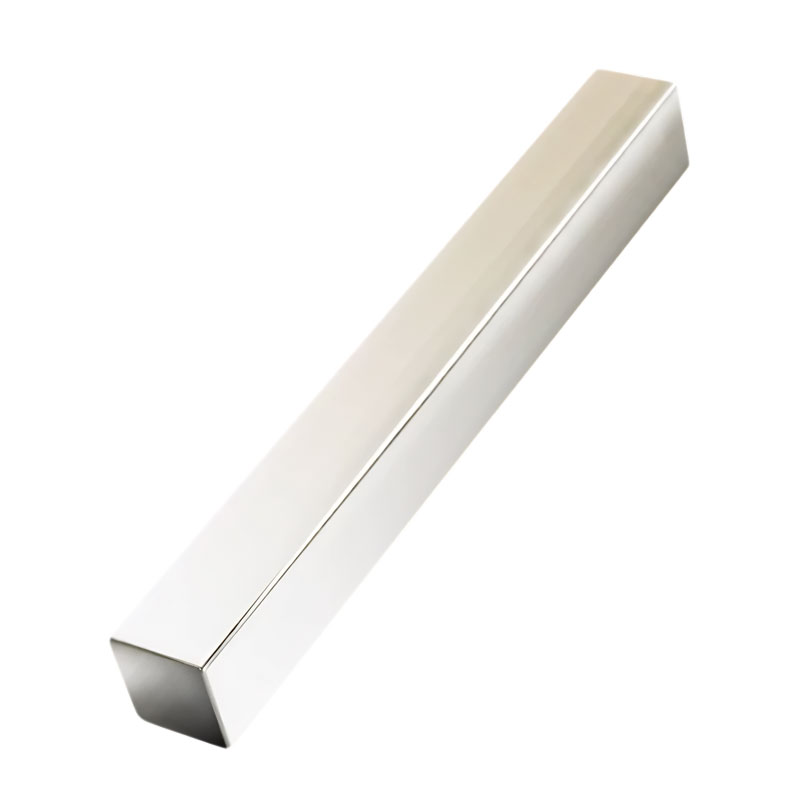

• Protective Casing: Seamless, mirror-polished SUS304 or SUS316L stainless steel tube providing excellent wear and corrosion resistance.
• High-Performance Core: Rare-earth Neodymium (NdFeB) magnets paired with low-carbon steel flux-guiding plates to optimize the magnetic circuit.

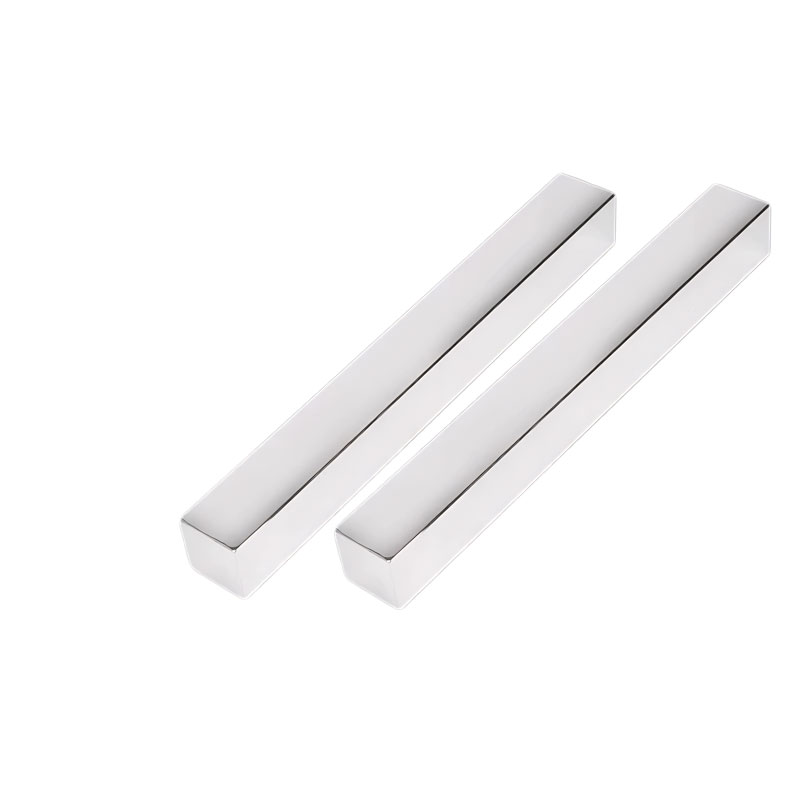

• Space-Saving Profile: Thanks to their smooth, flat surfaces, these square magnetic rods are uniquely suited for battery coating machines, tight chutes, or locations with highly restricted installation space.

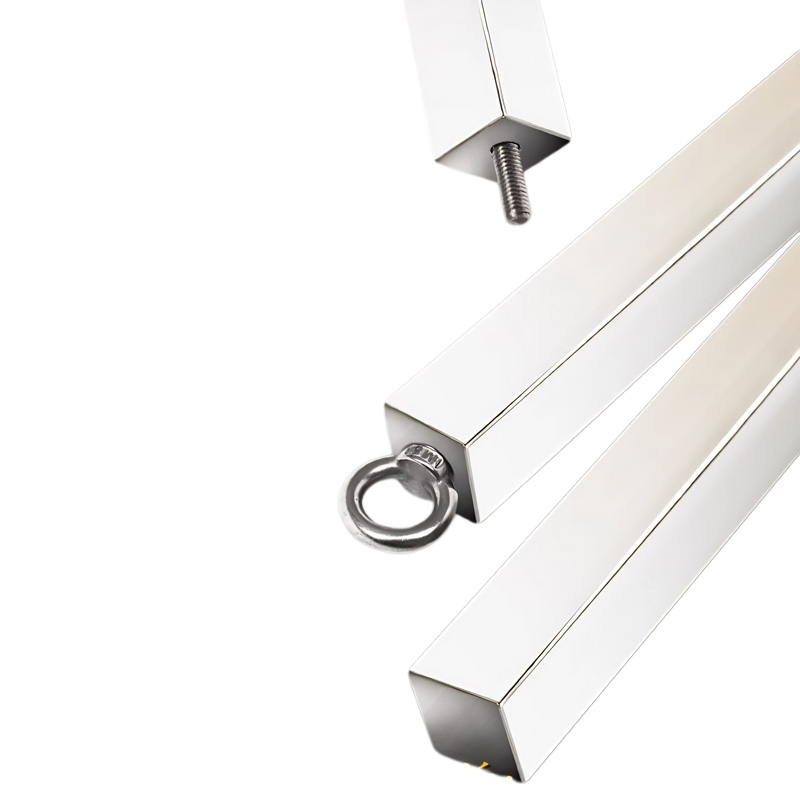

• Custom Connections: Available with internal threads, external threads, lifting eyes, or plain ends to match your existing equipment framework.

Features and Specifications

Unlike conventional round rods where magnetic flux lines are evenly distributed over a cylindrical profile, Stainless Steel Square Magnetic Bars concentrate their immense magnetic pull across flat planes. This design allows users to flexibly utilize the effective magnetic surfaces based on the installation orientation. The square structure fits more precisely against the inner walls of equipment such as chutes, pipelines, and processing chambers, enabling iron removal without dead zones. Square magnetic rods can be integrated into various production lines for continuous separation.

1. Dead-Zone-Free Iron Removal: The flat profile fits flush against the straight inner walls of rectangular chutes, processing chambers, and square pipelines, ensuring no material escapes the magnetic field.
2. Secure Retention: The flat faces provide a stable landing area for captured contaminants, reducing the risk of iron particles being washed back into the clean product stream by heavy material flow.

Technical Parameters

Key Advantages

1. High Separation Efficiency

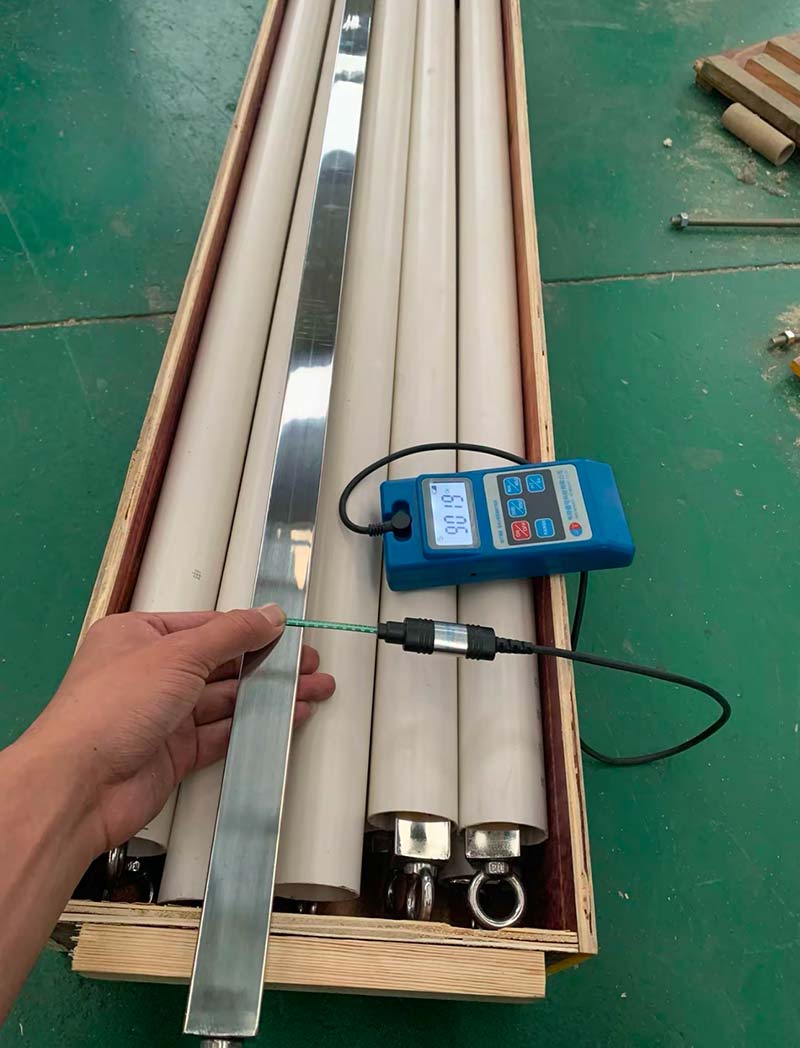

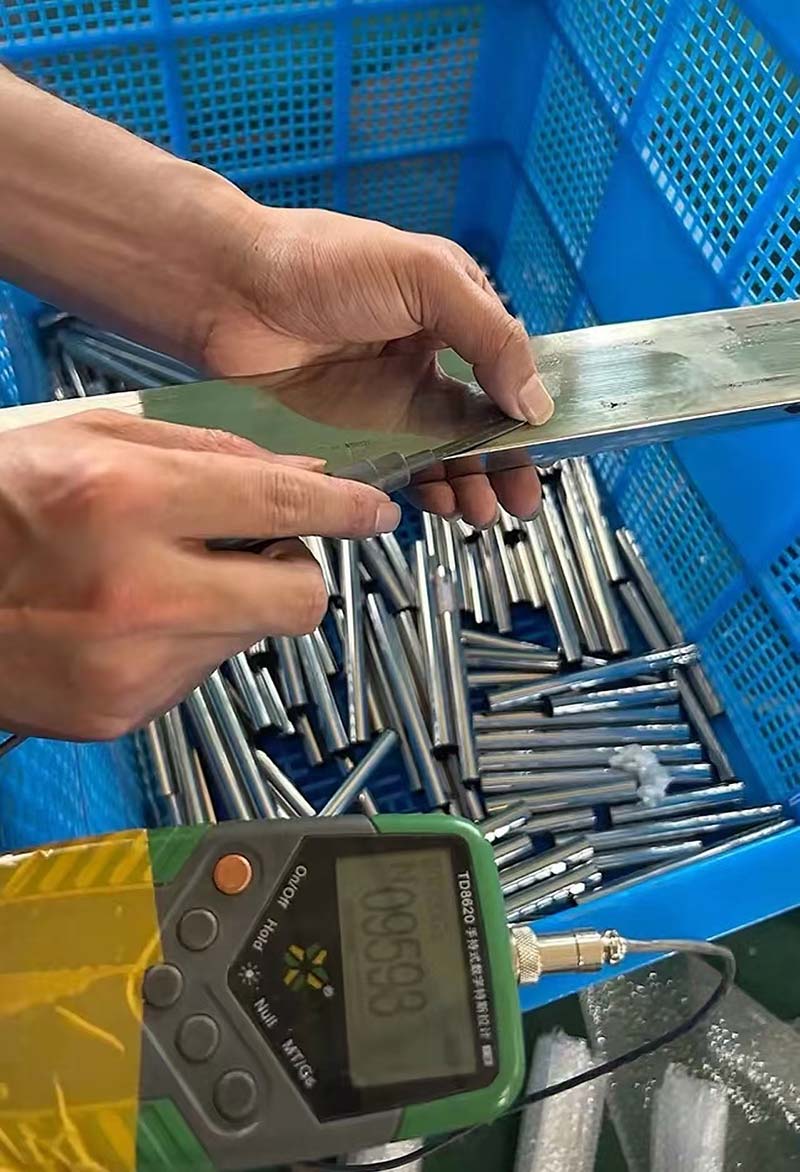

With a permanent NdFeB core reaching up to 14,000 Gauss, these stainless steel square magnetic bars rapidly trap micron-scale ferrous fragments to prevent product defects and equipment wear.

2. Strong Application Flexibility

Square magnetic rods can be customized in cross-section size, length, and magnetic strength. They are suitable for installation in coating machines, pipelines, hoppers, and other processing equipment handling powders, granules, and liquids.

3. Low Operating Cost

The permanent magnetic design consumes no electricity and requires minimal maintenance. The corrosion-resistant, smooth surface can be easily cleaned with simple wiping, ensuring a long service life and low operating costs.

4. Safe and Environmentally Friendly

Physical magnetic separation does not alter the chemical properties of materials, requires no consumables, and generates no secondary pollution. It fully complies with food-grade and medical-grade hygiene standards.

Applications

Stainless Steel Square Magnetic Bars provide indispensable ferrous contamination control across global sectors:

• Lithium Battery & Electronic Materials: Fine-purity slurry protection on high-precision coating lines.
• Food & Pharmaceutical Processing: Removing metal grit from powders, granular ingredients, and active spices.
• Plastics, Ceramics, & Glass Manufacturing: Safeguarding automated processing machinery from tramp metal wear.
