High Intensity Magnetic Rod for Separation

Structure and Materials

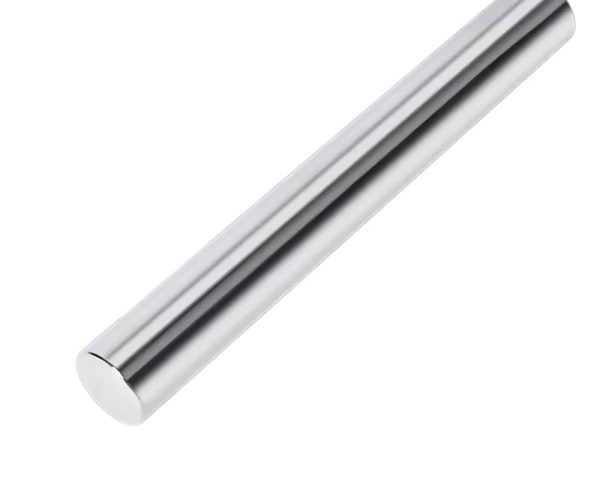

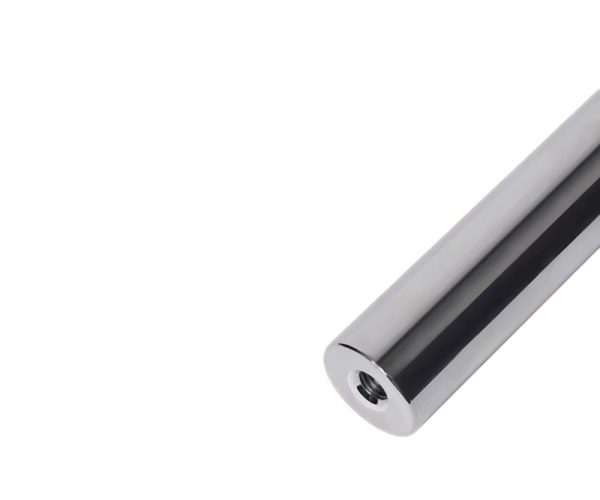

A cylindrical magnetic rod, also known as a round magnetic rod or magnetic bar, is a high intensity magnetic rod for separation used to remove ferromagnetic contaminants from industrial materials. It is made of SUS304 or SUS316L stainless steel casing, with a high-performance magnetic core composed of neodymium (NdFeB) magnets.

The magnetic core typically consists of high-performance cylindrical magnetic elements and magnetic flux guiding plates. Through an optimized magnetic circuit design, the surface magnetic strength can reach up to 15,000 Gauss.

The seamless stainless steel tube protects the magnetic core while ensuring easy cleaning and maintenance, meeting the hygiene requirements of industries such as food processing, pharmaceuticals, and chemicals.





Features and Specifications



• Diameter range: 16 mm – 60 mm
• Length: customizable up to 3000 mm
• Surface magnetic strength: 6000 – 15000 Gauss
• Max operating temperature: ≤ 80°C
• Up to 350°C maximum

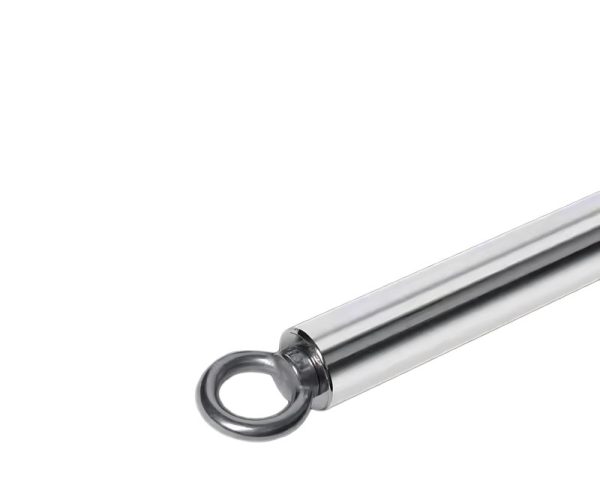

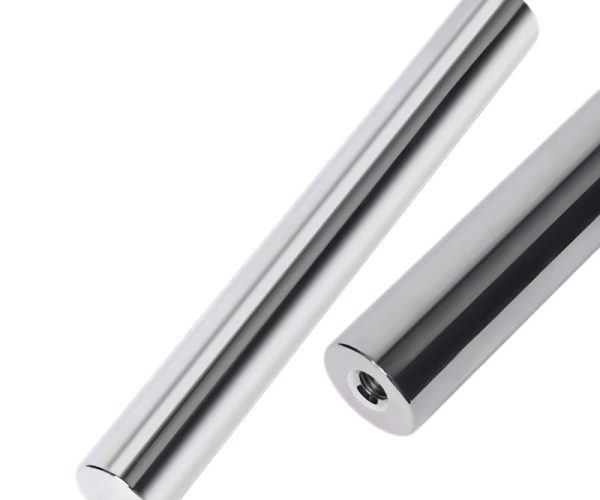

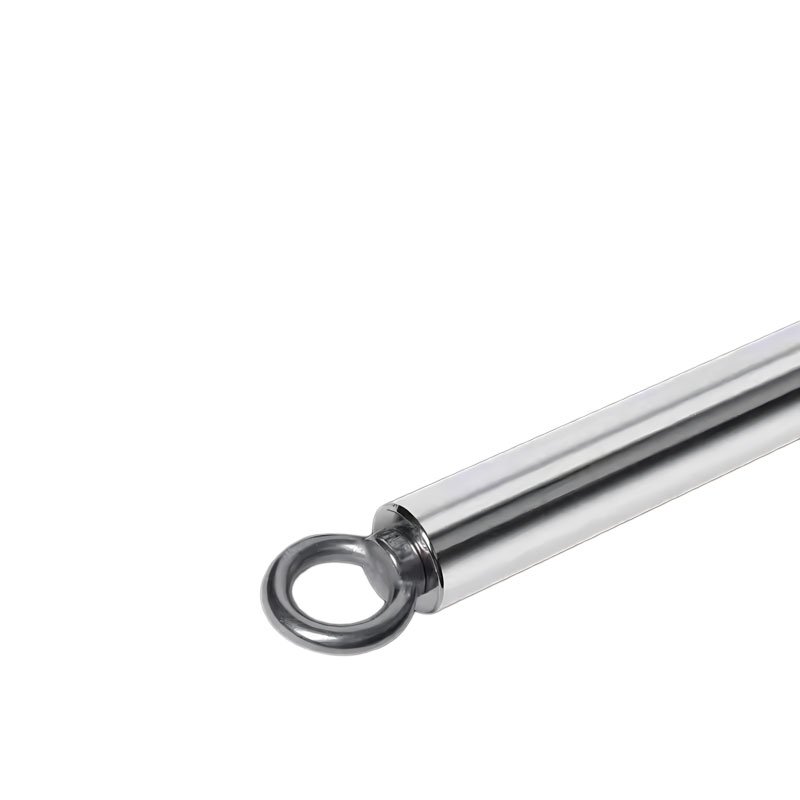

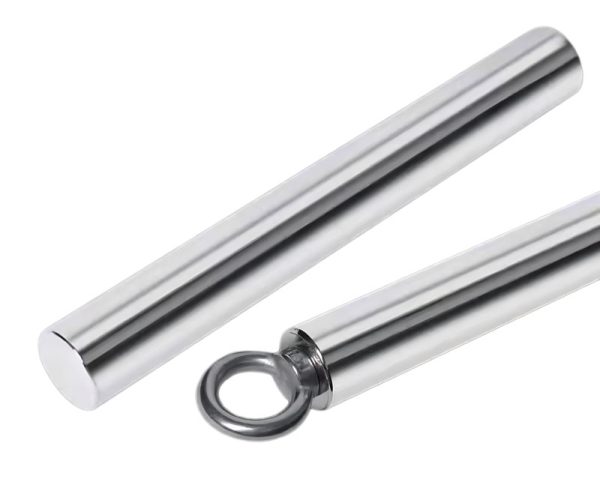

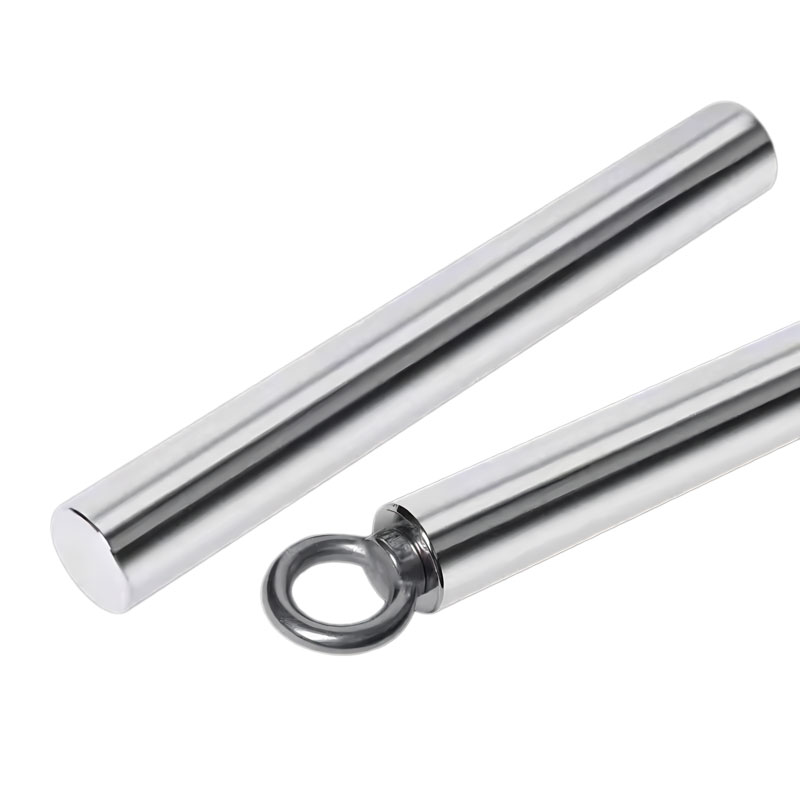

• End connection methods: eye bolt, threaded end, dual bolt, or custom design



Technical Parameters



Model	Surface Magnetic Strength	Outer Tube Material	Diameter	Length	End Connection Options	Operating Temperature
MG-16	6000-10000GS	SUS304/316L	16 mm	100-1500 mm	Internal thread, external thread, lifting eye, or customized according to specific application requirements.	<80℃ <100℃ <120℃ <150℃ <180℃ <200℃ <300℃ <350℃
MG-19	6000-12000GS	SUS304/316L	19 mm	100-1500 mm
MG-22	6000-12000GS	SUS304/316L	22 mm	100-1500 mm
MG-25	6000-14000GS	SUS304/316L	25 mm	100-1500 mm
MG-28	6000-14000GS	SUS304/316L	28 mm	100-1500 mm
MG-30	6000-14000GS	SUS304/316L	30 mm	100-2000 mm
MG-32	6000-15000GS	SUS304/316L	32 mm	100-2000 mm
MG-38	6000-15000GS	SUS304/316L	38 mm	100-2500 mm
MG-50	6000-16000GS	SUS304/316L	50 mm	100-3000 mm



Key Advantages



1. High iron removal efficiency

Equipped with high-performance magnets providing 6000–15000 Gauss magnetic strength, the magnetic rod can efficiently capture fine ferromagnetic contaminants, improving separation efficiency and reducing equipment wear.



2. Customization capability

Magnetic rods can be customized in diameter, length, and magnetic strength to meet different separation requirements. They can be integrated into pipelines or processing systems and are suitable for powders, granules, and liquids.



3. Low operating cost

The permanent magnet design requires no power supply and minimal maintenance. The corrosion-resistant and smooth surface allows easy cleaning, ensuring long service life and low operating cost.



4. Safe and environmentally friendly

Magnetic separation is a physical process that does not alter material properties and requires no consumables, preventing secondary contamination. Suitable for food-grade and hygiene-sensitive applications.





Installation



Select installation methods based on application environment and material flow characteristics to ensure effective contact between materials and the magnetic rod for optimal separation performance.



1. Embedded installation

Magnetic rods are installed horizontally inside pipelines or hoppers. As materials pass through, ferromagnetic contaminants are captured on the rod surface. Suitable for powders, granules, and liquids.



2. Suspended installation

Magnetic rods are installed above conveyors or discharge points. During material flow, contaminants are attracted and retained, requiring periodic cleaning. Ideal for bulk materials.



3. Drawer-type

Magnetic rods are assembled into drawer-type magnetic grates for easy removal and cleaning. This design is widely used in food and pharmaceutical production lines with high hygiene requirements.



4. Portable operation

Individual magnetic rods can be manually used for localized separation in small containers or hoppers, suitable for flexible or temporary applications.



* Made with high-performance rare earth neodymium magnets for maximum magnetic strength.
