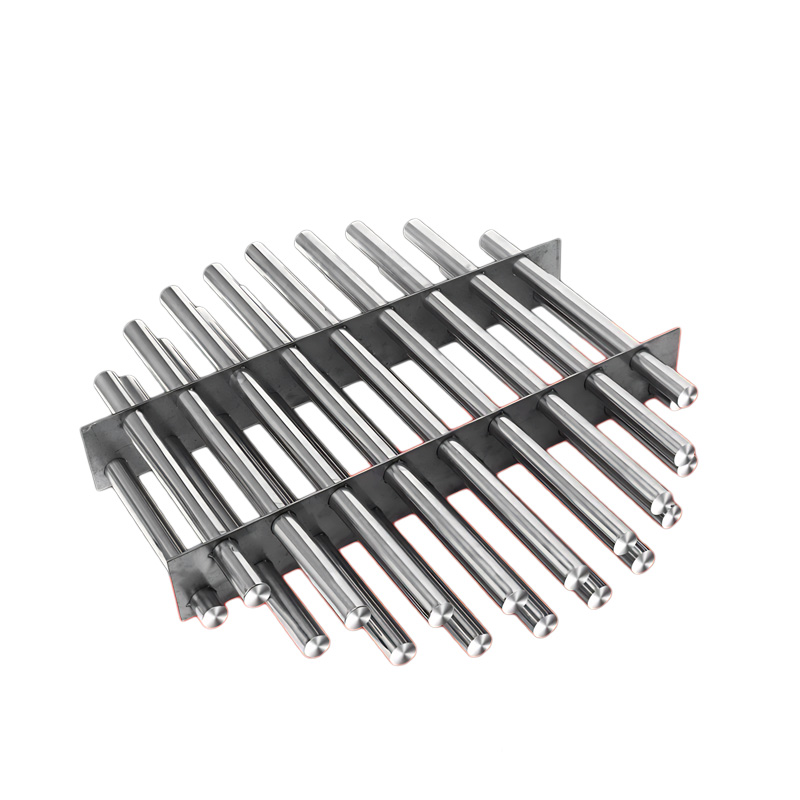

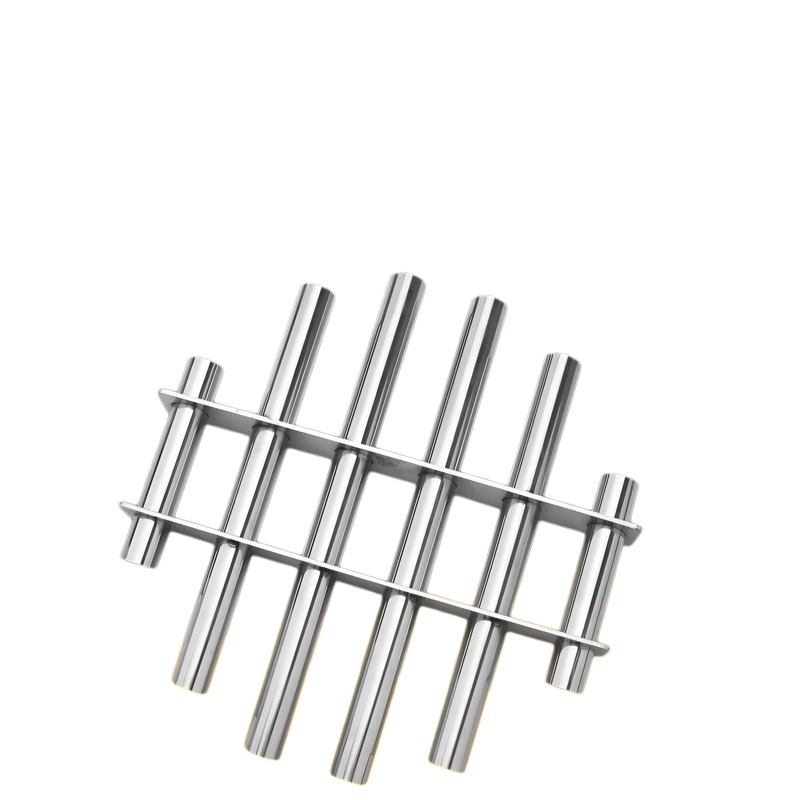

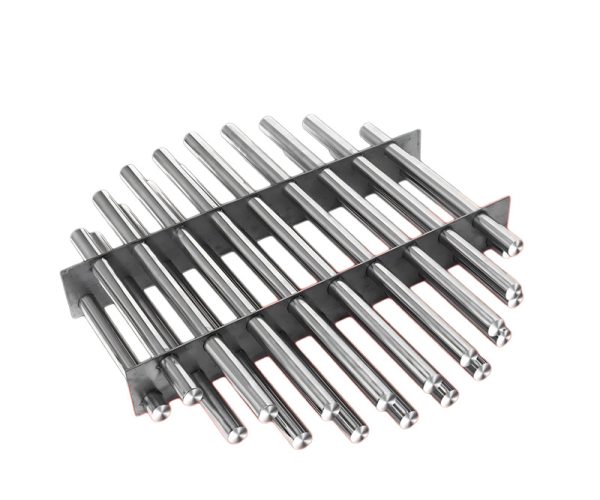

Food Grade Round Magnetic Grates
-Product Highlights
The Food Grade Round Magnetic Grates are heavy-duty permanent magnetic separation systems engineered to deliver superior purity control in high-hygiene production lines. Each circular unit is constructed with a premium 304 or 316L stainless steel housing that holds an optimized array of high-intensity magnetic rods. It is ideally suited for direct integration into round hoppers, vertical chutes, and material pipelines to intercept fine ferrous debris before it reaches downstream machinery. Featuring zero power consumption, straightforward installation, and effortless cleaning, these food-grade round magnetic grates offer a passive, cost-effective solution for treating powders, granular bulk solids, and liquid slurries.
-Working Principle
Food Grade Round Magnetic Grates utilize a carefully designed permanent magnetic field pattern across multiple parallel rods. When raw materials flow through the circular frame by gravity or mechanical force, any magnetic contaminants and fine iron fragments are instantly pulled from the product stream and locked securely onto the underside of the bars. The staggered arrangement of the internal magnetic elements forces the material to pass closely over the high-intensity surfaces, achieving maximum iron removal efficiency and preventing product contamination.
Product Information
Structure and Materials
Every Food Grade Round Magnetic Grate manufactured by MagnetGlobal is built to comply with international hygiene and safety regulations. The exterior housing features seamless, fully welded SUS304 or SUS316L stainless steel tubing that undergoes a rigorous mirror-polishing process to achieve a surface roughness of Ra less than 0.4 micrometers. This premium surface treatment prevents material caking and bacterial growth. Inside the protective sleeve, a series of high-performance rare-earth Neodymium (NdFeB) magnetic elements are paired with low-carbon steel flux plates to maximize the surface intensity, allowing the grid to maintain long-term magnetic stability even in demanding environments.
Features and Technical Specifications
Unlike standard grid separators, our Food Grade Round Magnetic Grates are engineered with specialized mechanical dimensions and high-flux circuits that optimize flow rate and filtration performance simultaneously. The surface magnetic strength typically ranges from 6,000 Gauss to a powerful 12,000 Gauss, which is fully capable of trapping micron-sized paramagnetic particles and fine metal wear. The standard design is optimized for environments up to 80 degrees Celsius, though custom heat-resistant internal configurations can be specified to handle material temperatures up to 350 degrees Celsius for hot air drying lines or industrial kilns.
Key Advantages of MagnetGlobal Design
Choosing our Food Grade Round Magnetic Grates ensures exceptional separation reliability and lowered operational costs. The permanent magnetic core operates continuously without the need for electricity or secondary consumable filters, translating to zero monthly utility expenses. Furthermore, the robust, fully sealed stainless steel frame protects the underlying rare-earth magnets from moisture, chemical corrosion, and mechanical impacts, extending the service life of the grid to several decades with minimal required maintenance. The sleek, non-stick surfaces also mean operators can wipe away collected tramp iron quickly during routine checks, reducing plant downtime.
Target Applications and Engineering Support
These specialized Food Grade Round Magnetic Grates are widely deployed across global industries where product purity and machine safety are paramount. They are critical additions to injection molding hoppers in the plastics industry, feeding inlets in pharmaceutical blending, and grain processing lines handling sugar, spices, flour, or starch. At MagnetGlobal, we provide comprehensive OEM and ODM support, allowing you to customize the outer frame diameter, number of integrated magnetic bars, and specialized mounting tabs to fit your existing plant infrastructure perfectly.
