Pull-Out Magnetic Rod
-Product Highlights
The pull-out magnetic rod (also known as a quick-clean magnetic bar) is a high-intensity magnetic filtration element designed for fast manual iron discharge. It consists of a stainless steel outer tube, neodymium magnet core, and a central pull rod or handle. Suitable for liquids, slurries, and powders, it allows cleaning without dismantling equipment and offers much higher efficiency than fixed magnetic rods. Widely used in lithium battery, fine chemical, food, and pharmaceutical industries.
-Working Principle
The Pull-Out Magnetic Rod operates by using the magnetic tip to attract ferrous contaminants.

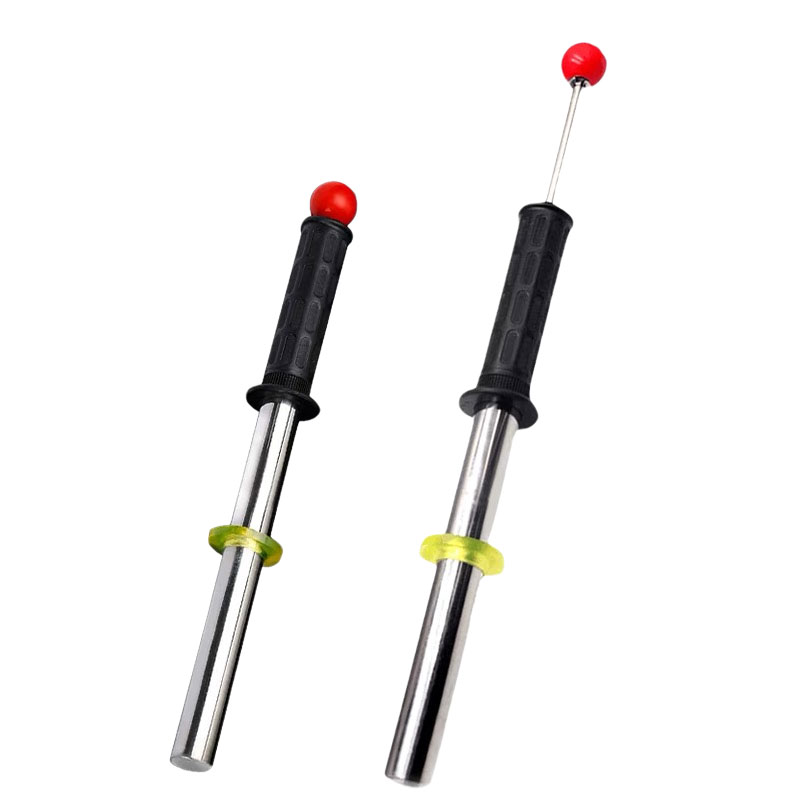

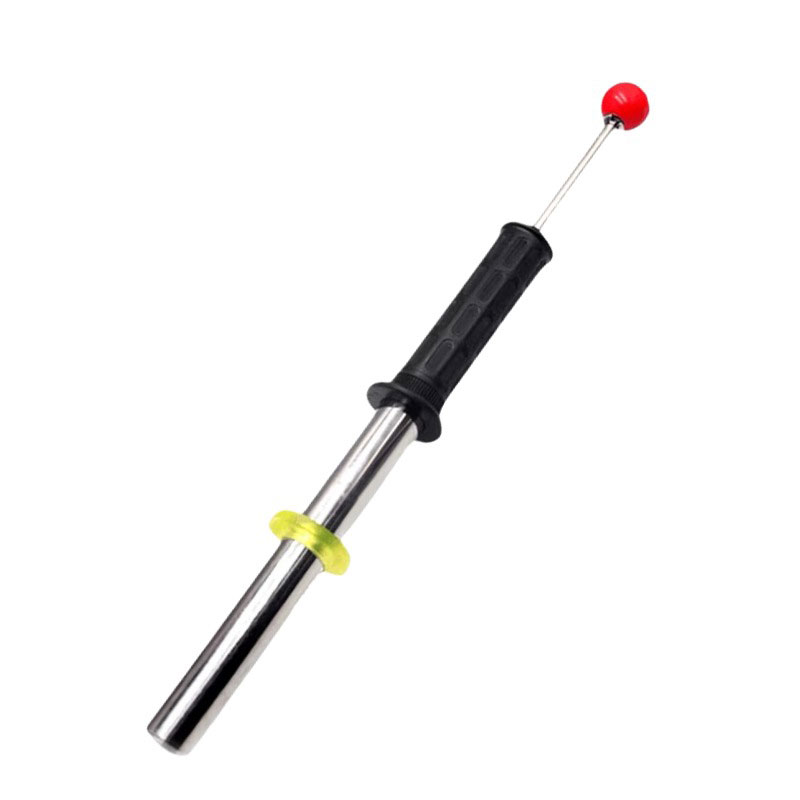

When iron particles are collected on the magnetic section, the operator pulls the rear handle, causing the internal magnetic core to retract inside the protective sleeve.
This action separates the magnetic field from the collected iron, allowing the contaminants to automatically drop off the rod surface.
The self-cleaning pull-out mechanism eliminates the need for manual scraping, significantly improving efficiency and ease of use.
Product Information
Structure & Materials

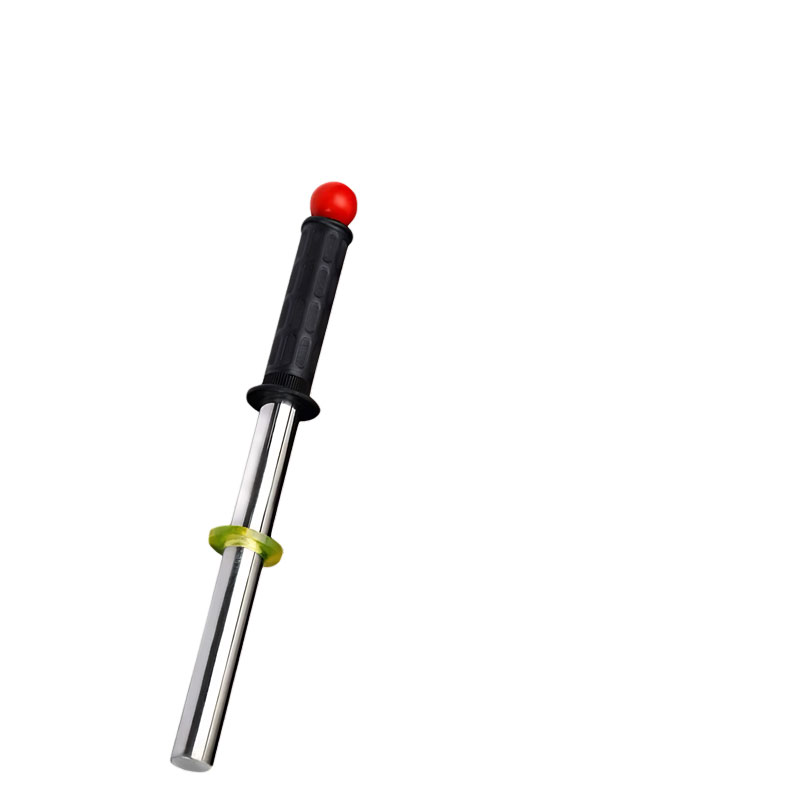

The Pull-Out Magnetic Rod is a portable magnetic separation tool designed for quick and easy removal of ferrous contaminants.
It consists of an internal permanent magnetic core connected to a retractable pull rod, enclosed by a SUS304 stainless steel sleeve, and equipped with an ergonomic rubber handle.
The pull-type structure allows simple operation for iron collection and release. Its lightweight construction and durable materials make it ideal for handheld operation and practical iron removal in various working environments.
Features & Specifications
- Compact length when retracted for convenient storage and transport
- Simple and intuitive operation
- Robust structure resistant to breakage
- Long service life with minimal maintenance
- No power supply required
- Effective iron removal even in narrow or confined spaces
Technical Parameters
| Model | Magnetic Rod Diameter (mm) | Magnetic Length at Front End (mm) | Overall Length (mm) | Magnetic Strength | ||
| MG-380 | φ25 | 150 | 380 | Standard Pin Type | High-Strength Type | Enhanced / Heavy-Duty Type |
| MG-580 | φ25 | 220 | 580 | Standard Pin Type | High-Strength Type | Enhanced / Heavy-Duty Type |
| MG-880 | φ25 | 260 | 880 | Standard Pin Type | High-Strength Type | Enhanced / Heavy-Duty Type |
| MG-1080 | φ25 | 300 | 1080 | Standard Pin Type | High-Strength Type | Enhanced / Heavy-Duty Type |
Key Advantages
- Flexible for multiple application scenarios
- Efficient and labor-saving operation
- Portable and easy to store
- Durable and practical design
- Unrestricted by working location or power availability
Applications
Pull-Out Magnetic Rods are widely used in industrial workshops, automotive maintenance, warehouses, machinery servicing, metal processing, and hardware manufacturing, providing fast and reliable ferrous contamination removal during daily operations and equipment maintenance.
